Reverse Flow Gravity Filter Cartridge

US Publication Number: WO 2016033596 A1

ABSTRACT
A carafe filter cartridge for reverse flow applications where the filter housing and filter media top end cap directs unfiltered fluid into the filter media annular cavity, through the filter media sidewalls. And the filter media bottom end cap prohibits egress, filter fluid from exiting through the filter media end or the annular cavity. Filtered fluid is instead directed out through apertures in the filter housing sidewall. The optimum ratio of annular cavity and/or top end cap orifice area to the respective perimeter is determined to remove the risk of detrimental fluid flow due to air bubble generation.



Method of making a filter media with an enriched binder (Continuation)

US Patent Number: US 9289702

Abstract

Water filtration media having a charged material affixed directly to binder material used in the fabrication of the filter media. A microbiological interception enhancing agent is added to the binder directly. The media having a charged material and a microbiological interception enhancing agent both affixed directly on or in a binder material is then combined with core filter media and prepared as a filtration media. A filter is prepared from the treated filter media.



Link via USPTO

Filter media for gravity filtration applications

US Publication Number:  US 20150014240 A1

ABSTRACT
A gravity filter media fabricated from multiple spiral wound or pleated layers, where different layers are designed for specific contaminant removal process and the layers are combined into a single pack for ease of use. The layers or fiber sheets are chemically treated for contaminant removal, with different layers having different chemical treatments, or the layers are immobilized with particles of various sizes for use as low contact-time adsorbents, with different layers having different immobilized particles, or the pore structure is varied from one fiber sheet to another—one being a tight pore structure, and the other being a more open pore structure, or any combination thereof. When using immobilized particles, the immobilized particles can be chemically treated for the specific removal of targeted contaminants, and multi-layered for custom designed removal of specific contaminants.

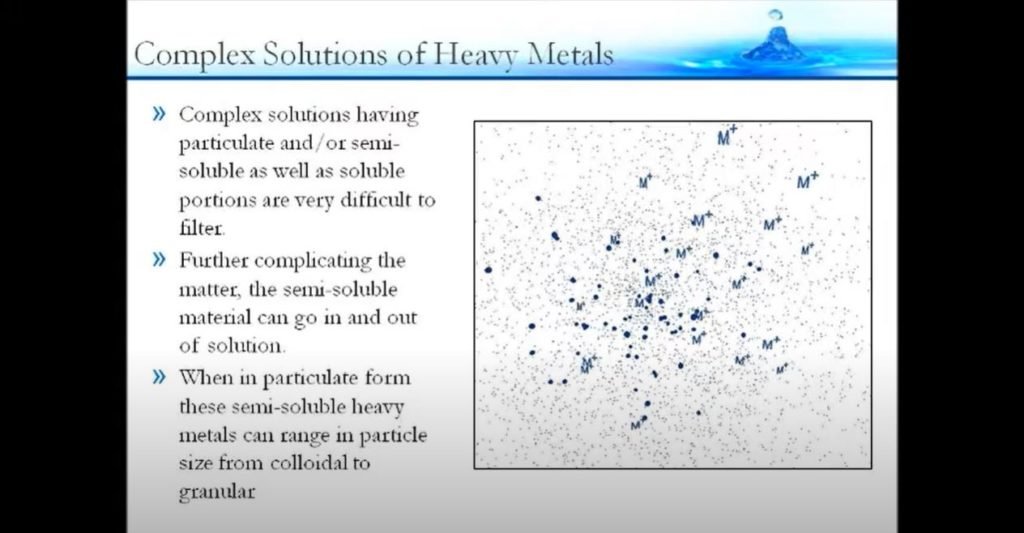

Electrostatic removal of colloidal, soluble, and insoluble materials from a fluid

US Publication Number: CA 2920294 A1

ABSTRACT
A filter that contains an adsorbent to remove the soluble portion of the contaminant, and then some form of electrostatic attraction additive. The electrostatic attraction additive would serve to pull the colloidal and particulate portion of the contaminant out of fluid, which could be held indefinitely, or be used to hold while the contaminant is allowed to solubilize and then be removed by the adsorbent. The electrostatic attraction additive could either be positively or negatively charged depending on the surface charge of the particulates that are in the fluid, and includes particles or fibers charged with charged polymers, zeolites, cation or anion exchange resin, powdered alumina, or nano-alumina.



Carafe filter with air lock prevention feature

US Publication Number: US 20150014233 A1

ABSTRACT



A filter for gravity-fed applications, having filter media with a hollow center, the filter being generally prone to a degradation or cessation in fluid flow due to air entrapment or air lock within the filter housing cavity, which develops during filtering. A diffuser element is introduced to pierce the entrapped air bubble, the diffuser element being an elongated structure connected to the filter housing top end cap and extending through the entrapped air bubble to the filter media.



Link via Google Patents

Filtering Container

US Publication Number: US20140186496

ABSTRACT

A collapsible bag or compressible bottle container for accepting, holding, and filtering fluid. Fluid is filtered upon entry to the container or filtered upon egress. The filter media resides either in a removable cap, or in a second fluid-tight compartment attached to, and in fluid communication with, the container body. A one-way valve with unique one-time connection to a fluid source mitigates potential contamination from container overuse. A second collapsible layer is used in conjunction with the collapsible bag to accept compressed air that provides rigidity for the container body.
