DJI Mini Pro 3 Holders

Posted on by legna880

3D printed protective shells for the DJI MIni Pro 3 Pieces and parts. Printed in ABS, designed in Freecad and printed on a Flashforge Creator Pro 2.

Drone Shell:

Made of 2 parts that are bolted together using 2mmx10mm metric screws and 2mm threaded inserts.

Controller Shell

Made of 2 parts that are bolted together using 2mmx10mm metric screws and 2mm threaded inserts. Waves on the side allow for charging the controller while inside the protective shell. 2MM soft leather can be glued onto the base plate to protect the screen from scraping.

Battery Case

Made in a single part. Clips on the inside edge clip to the battery and prevent them from falling out and the back edge has two openings to accommodate a 2″ strap.

STL Files available here:

DroneParts-STL-FilesDownload

Serenity Earth: Episode 2- Florida Beaches

Posted on by legna880
50 Minute Relaxing video accompanied with music taken at several different beaches in Florida. Video taken at Pompano Beach, Deerfield Beach, Fort Lauderdale Beach and Lauderdale by the Sea.
Audio by Alex Bainter. Lullaby (Excerpt) Licensed under CC by 4.0
www.alexbainter.com
©2022 Andrew Lombardo
www.awlteidup.com

All Serenity Earth Videos can be found on YouTube: Serenity Earth YouTube Channel

Art Gallery in the Living Room

Posted on by legna880

Samsung Frame TV wall mounted over a hand made TV stand. Over 1000 of my own personal photos optimized for 4K on the hard drive cycling through.

The TV stand is made with a sapele top, a mixture of red and white oak for the main frame of the stand, cherry door faces with pine accents and pearls in the center. The TV stand also has WIFI enabled LED lights in the console itself which projects behind and below the top that can be turned on and off, colors changed and brightness as well via an app (Sylvania Flex LED lights) and is turned on by a wireless switch.

Process for Forming Porous Filter Media

Posted on by legna880

Disclosed is a filter element from removing contaminants from water comprised of first filter media particles having a first particle size and second media particles having a second particle size and methods for making such a filter element. The first media particles are adhered to surfaces of the second media particles. A binder connects the second media particles with one another so that interstitial spaces are formed between second media particles. A portion of the smaller first filter media particles are positioned within the interstitial spaces. According to one embodiment of the disclosure water flows through the filter element at a flux greater than about 1.5 ml/min/cm.sup.2 has a pressure drop less than 20 psi

Link via USPTO

http://appft.uspto.gov/netacgi/nph-Parser?Sect1=PTO2&Sect2=HITOFF&p=1&u=%2Fnetahtml%2FPTO%2Fsearch-bool.html&r=3&f=G&l=50&co1=AND&d=PG01&s1=%22LOMBARDO+Andrew%22.IN.&OS=IN/%22LOMBARDO+Andrew%22&RS=IN/%22LOMBARDO+Andrew%22



Google Patents PDF:

https://patentimages.storage.googleapis.com/16/2b/b7/70a2f45a27af2b/US20200407239A1.pdf

Filter and Filter Media for Removing Organic Acid from Water

Posted on by legna880

Disclosed is a filter media for removing contaminants such as organic acids from water. The filter media comprises porous particles. The particles have a total pore volume greater than about 0.4 cc/g. The pore volume is primarily or substantially comprised of epipores, that is, pores that are larger than about 5 nm. The filter media may also include a non-porous filter material and a binder. The filter media may be formed into a filter element, with the binder joining particles of the filter media together into a solid body. The percentage of the total pore volume provided by epipores is greater than about 40%. The filter reduces an initial concentration of an organic acid by greater than 80% at a flux greater than 0.76 ml/min/cm.sup.2.

Link via USPTO

http://appft.uspto.gov/netacgi/nph-Parser?Sect1=PTO2&Sect2=HITOFF&p=1&u=%2Fnetahtml%2FPTO%2Fsearch-bool.html&r=2&f=G&l=50&co1=AND&d=PG01&s1=%22LOMBARDO+Andrew%22.IN.&OS=IN/%22LOMBARDO+Andrew%22&RS=IN/%22LOMBARDO+Andrew%22

Google Patents PDF:

https://patentimages.storage.googleapis.com/95/97/f0/1e3684d48db53a/US20200407240A1.pdf

Porous Filter Media

Posted on by legna880



Disclosed is a filter element from removing contaminants from water comprised of first filter media particles having a first particle size and second media particles having a second particle size and methods for making such a filter element. The first media particles are adhered to surfaces of the second media particles. A binder connects the second media particles with one another so that interstitial spaces are formed between second media particles. A portion of the smaller first filter media particles are positioned within the interstitial spaces. According to one embodiment of the disclosure water flows through the filter element at a flux greater than about 1.5 ml/min/cm.sup.2 has a pressure drop less than 20 psi.

Link via USPTO:

http://appft.uspto.gov/netacgi/nph-Parser?Sect1=PTO2&Sect2=HITOFF&p=1&u=%2Fnetahtml%2FPTO%2Fsearch-bool.html&r=1&f=G&l=50&co1=AND&d=PG01&s1=%22LOMBARDO+Andrew%22.IN.&OS=IN/%22LOMBARDO+Andrew%22&RS=IN/%22LOMBARDO+Andrew%22

Google Patents PDF:

https://patentimages.storage.googleapis.com/1d/39/82/9c70ced5cbdf81/US20210171359A1.pdf

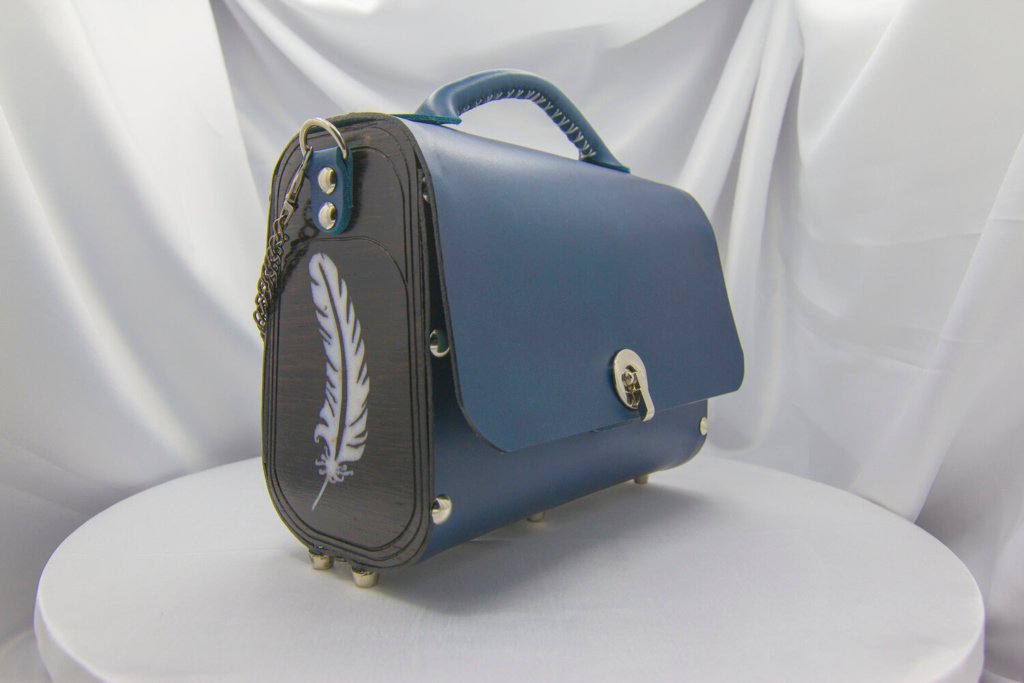

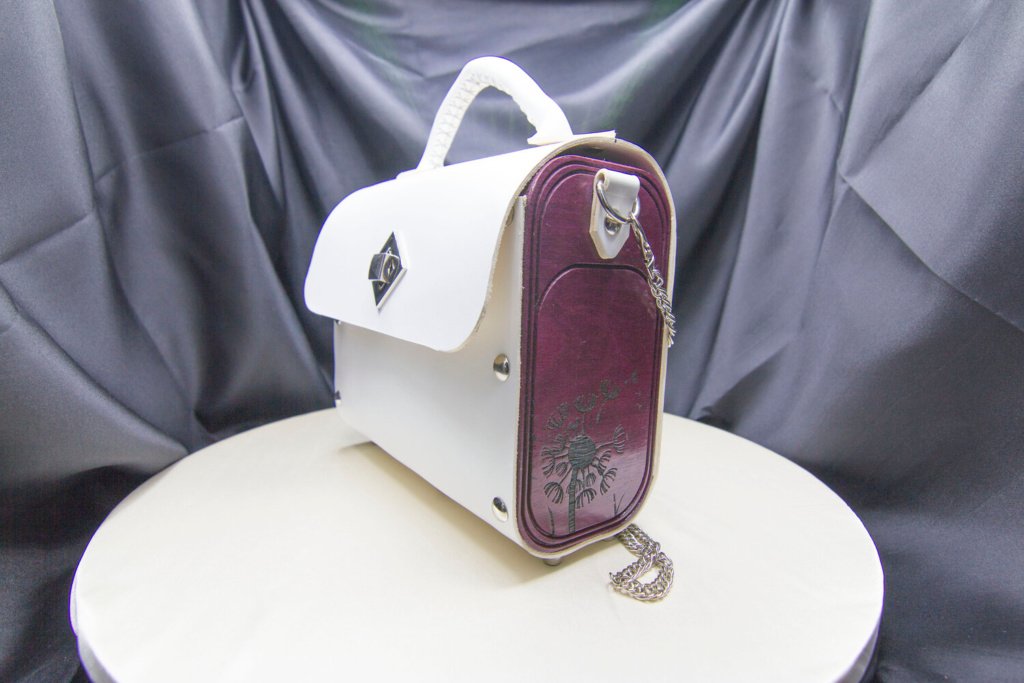

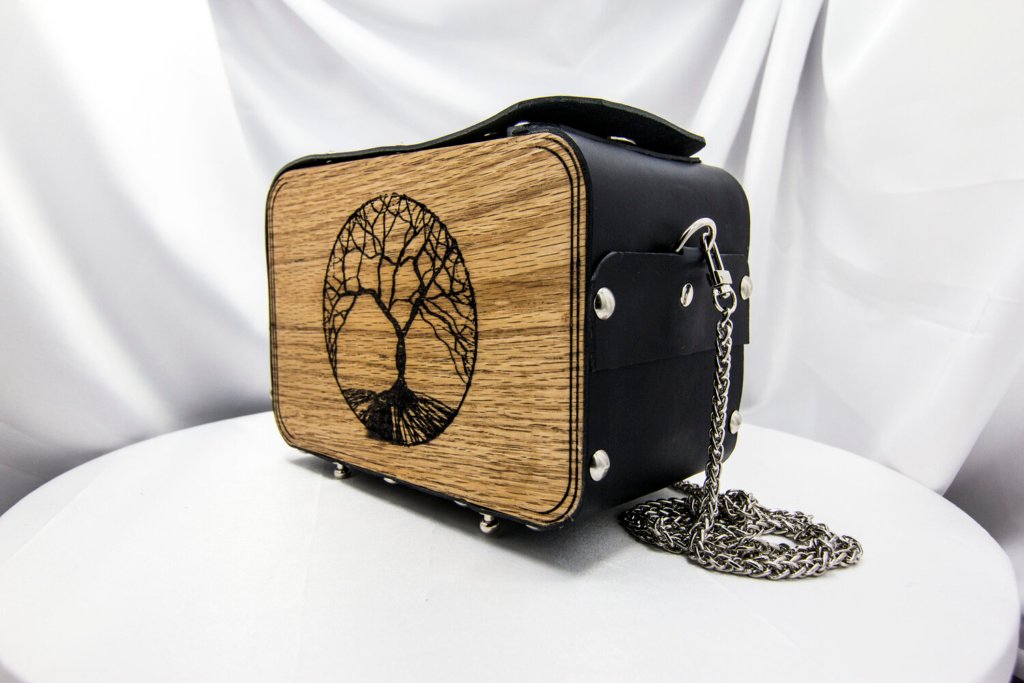

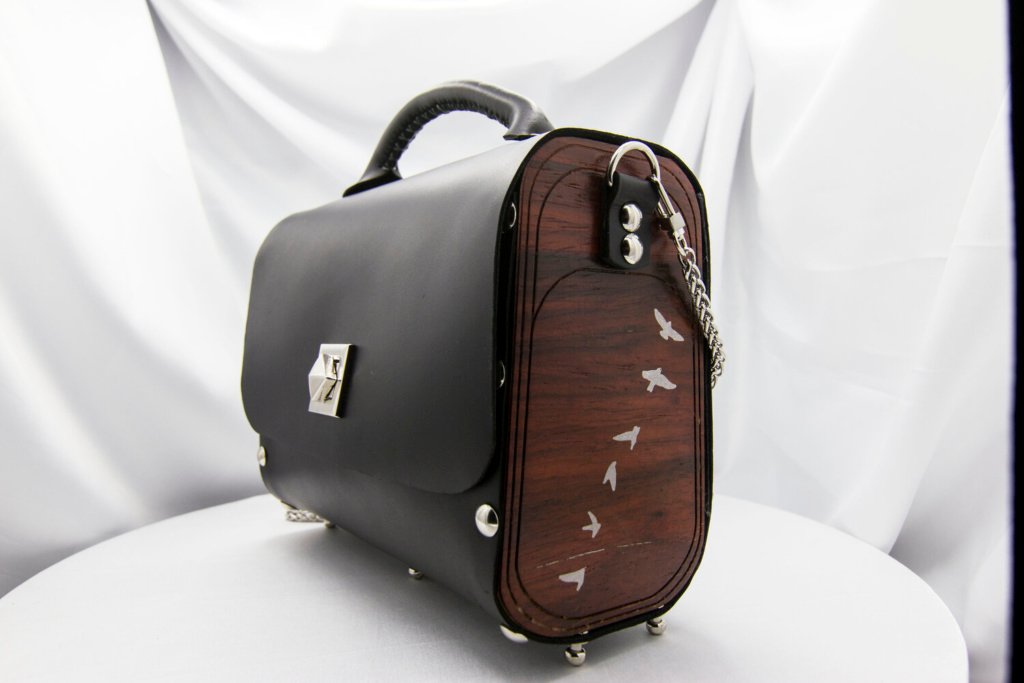

Leather Purse

Posted on by legna880

Oak sides cut with CNC design, Leather is laser etched with designs inside and out. With zipper pouch on the inside back. Key holder tassel, pen and sun glasses holder on one side, and phone holder on the other. Can be used as a hand bag, worn as an over the shoulder, cross body, and also converts to a backpack.

Custom made and Designed for SLC ♥

Aquaguidance

Posted on by legna880

AquaGuidance Secures $3 Million Funding for Virus-Removal Water Filtration Technology

Global Blue Planet Group Invests in AquaGuidance’s Breakthrough Gravity-Fed Filtration MediaMarch 05, 2020 08:05 AM Eastern Standard Time

FORT LAUDERDALE, Fla.–(BUSINESS WIRE)–AquaGuidance, an innovator in water-purification filtration technology, has secured early-stage financing of $3 million from Blue Planet Group Ltd (BPG) for a breakthrough gravity-fed water filtration media capable of removing live viruses from pre-filtered drinking water. Blue Planet Group is a multi-national, vertically-integrated, private equity enterprise focused on advanced, proprietary specialty purification technologies for food, beverage, and water industries. The funding round will support market growth for AquaGuidance’s prototype gravity-fed filtration system, designed to remove harmful live viruses, bacteria, and cysts, producing safe drinking water without chemicals or reliance on power or pressure.

AquaGuidance Secures $3 Million Funding for Virus-Removal Water Filtration Technology. Global Blue Planet Group Invests in AquaGuidance’s Breakthrough Gravity-Fed Filtration Media. #WaterFiltration #CleanWater #EarlyRoundFunding #WaterBorneVirusTweet this

AquaGuidance’s filtration media (multiple patents pending) is the first known gravity-fed filter technology to pass the National Sanitation Foundation (NSF) P231 test protocol1 for virus removal without the use of chemicals, power, or pressure. The protocol sets up challenging, harsh standards for the removal of pathogens in a variety of water streams including those which have high levels of organic acids. The only systems currently able to pass P231 operate under pressurised flow from plumbing or require electricity and/or the use of chemicals. AquaGuidance’s technology will enable manufacturers of simple gravity-fed ceramic and hollow fiber membrane filters in common use to upgrade their systems to achieve effective removal of live viruses.

AquaGuidance’s prototype has undergone rigorous independent testing to meet Blue Planet Group’s investment criteria for innovation, efficacy, social impact, and environmentally-responsible technologies. Testing was conducted by MSR Global Health, an independent research and testing division of Cascade Designs, Inc., under the direction of Tim Oriard, Principal Investigator at Cascade Designs, Inc.

“The investors of Blue Planet Group focus on funding critical innovation in water, beverage, and food-safety filtration technologies and have invested over $20 million in this sector to date,” said Blue Planet Group CEO David Sherwin. “This additional $3 million investment underscores the investors’ commitment and confidence in AquaGuidance’s breakthrough gravity-fed filtration media.”

“Over two billion people globally lack access to safe drinking water. We now have the ability to help major industry players offer more comprehensive, better performing microbiological solutions for those in greatest need, whether for daily use or in disaster readiness and recovery,” said Duane Dunk, managing director for AquaGuidance. “Blue Planet Group’s commitment provides essential funding to bring our technology to an eager marketplace.”

With over 60 million households globally currently using ceramic water filtration systems that could easily adapt to AquaGuidance technology, company leadership is focused in serving the needs of ceramic or hollow fiber membrane filter manufacturers that serve residential and commercial customers, as well as the municipal, NGO, and critical infrastructure-provider marketplace for disaster preparedness and recovery.

About AquaGuidance, Inc.

AquaGuidance, Inc., is a Florida-based, for-profit company, specializing in water filtration solutions for residential and commercial drinking water applications where the water quality is poor. AquaGuidance’s core filtration media technology can claim the highest-certified capacity combined lead, mercury, chloramine, chlorine, taste and odor reduction filtration on the market. AquaGuidance has now developed the world’s first gravity-fed water filtration technology (patents pending) capable of removing harmful live viruses, bacteria, and cysts to full P231 requirements without the use of chemicals, power, or pressure, while preserving beneficial elements such as calcium, magnesium, and potassium. More testing is required to quantify the additional ability to reduce heavy metals, pharmaceuticals, chemicals and pesticides. The company is led by Managing Director Duane Dunk, a recognized expert in safe drinking water and emerging markets. For more information, visit http://aquaguidance.com.

About Blue Planet Group, Ltd

Blue Planet Group, Ltd, is a multi-national, vertically-integrated company, focused on advanced proprietary specialty filtration technologies for food, beverage, and water industries. Blue Planet Group and its subsidiary companies have developed specialized adsorbent medias which, when combined with industry-standard materials in common use, can be tailored to remove harmful contaminants from drinking water for a variety of uses. The breakthrough technologies have a potentially significant impact on human and environmental health. For more information visit http://blueplanet.global.

1 National Sanitation Foundation (NSF) P231 test protocol


https://www.businesswire.com/news/home/20200305005276/en/AquaGuidance-Secures-3-Million-Funding-for-Virus-Removal-Water-Filtration-Technology

Arduino Powered Laser Cat Toy

Posted on by legna880

Laser cat toy that randomly moves a laser pointer on the ground.
Randomly moves the laser left and right in a 140 degree window.
Randomly moves the laser up and down in a 55 degree window.
Holds the laser in place for a random amount of time between 1 and 3 seconds.
Will randomly “shake” the laser 1 out of every 4 movements, with a “shake” between 3 and 12 shifts back and forth.

Building instructions:

Necessary Materials:
Arduino nano: Link via Amazon
Laser Transmitter: Link via Amazon
MG90S Micro Servo: Link via Amazon
Micro or Mini USB Cable (depending on if you use the adapter below): Micro or Mini
USB plug: Link via Amazon
Zip Ties: Link via Amazon


Additional Materials that are helpful (but can be made without):
USB mini to micro adapter: Link via Amazon
Lever Nuts Connector: Link via Amazon
Junction Box (4.53×3.54X2.1): Link via Amazon
3M Mounting Tape: Link via Amazon
Arduino Screw Terminal Adaptor: Link via Amazon
Jumper Wires: Link via Amazon
Plastic Sheet: Link via Amazon

Optional and Helpful Tools:
Soldering Iron Kit: Link via Amazon
Hot Melt Glue Gun: Link via Amazon

Photos and directions:

  1. Cut a small piece of connector material (such as the sheet plastic from above materials, or wood, or any waste plastic will work as well).
  2. Dimensions for this should be about 2.5″ length by 1″ width, with a thickness of at least 1/8″.
  3. Screw the fist servo (x/y servo connected to pin2) to one side of the piece using the screws supplied with the servos
  4. Drill or melt two holes into the plastic to mount the second servo with a zip tie.
  5. Attach the second servo to the plastic piece with a zip tie so it looks like this:

6. Drill/Cut/ or melt a box hole into the top of your box to fit the first servo like so:

7. Drill/Cut/Melt a hole in the side if you are using the micro to mini usb converter dongle and connect to the arduino. If not just make a hole for your usb cable to mount to the Arduino.

8. Use double sided tape to mount the arduino to the bottom of the box.

9. Drill/Melt/Cut a hole in the top for passthrough of wires into the box

10. Mount the Laser to the second servo arm with a screw and a zip tie

11. Wire the system according the the diagram below:

12. Push the first servo into the hold in the box and mount with glue or screws.

13. Screw the top of the box down.

14. Finish the system with double sided tape,zip ties and hot melt glue

15. Connect the system up to your computer and open the arduino software

16. Upload the code below to the arduino:

CODE:

//—-Code Begin—

#include <Servo.h>

Servo s1;
Servo s2;

int rn1 =110; //random number 1 for x/y movement, set to 90 intitially
int rn2=50; //random number 2 for z movement, set to 50 initially
int rnt=5000; // random time number set to 1000 initially
int rn3=3; // random number for shake
int rn4=0; // random number for count
int rn5=0; // random number to determin if there is a shake or not

int shake1=10; // change in degrees for shake left right
int maxl=35; // max left movement in degrees
int maxr=175; //make right movement in degrees
int maxd=20; // max down movment in degrees
int maxu=75; // max up movement in degrees
int minshake=3; // Minimum shake in number of shakes
int maxshake=12; //maximum shake in number of shakes
int randshake=5; //max number for determining if there is a shake or not, 5 is one in 4 movements, 10 is one in 9, 2 is one in 2
int mindelay=1000; // minimum delay between movements in ms
int maxdelay =3000; //maximum delay between movements in ms
int shakedelay=50; // delay between x/y movements in shake

void setup() {
// put your setup code here, to run once:

s1.attach (2); // attach pin number to servo 1
s1.write (rn1); // write angle to servo 1
s2.attach (3); // attach pin number to servo2
s2.write (rn2); // write angle to servo 2
delay (rnt); // delay

}

void loop() {
// put your main code here, to run repeatedly:

// get random numbers
rn1= random (maxl,maxr);
rn2= random (maxd,maxu);
rn3= random (minshake,maxshake);
rn4=0;
rn5=random (0,randshake);

//rn1= 90;
//rn2= 90;

rnt= random (mindelay, maxdelay);

s1.write (rn1); //write angle to servo1
s2.write (rn2); //write angle to servo2

if (rn5 == 0) // Check to see if there will be a shake
{
while (rn4 < rn3) //shake while loop
{
s1.write (rn1+shake1);
delay (shakedelay);
s1.write (rn1-shake1);
delay (shakedelay);
rn4=rn4+1;
}
}

delay (rnt); //delay random value

}

// CODE END

Testing:

Plug in the system and make sure it works. You may have to adjust the mounting brackets to make sure the servo is moving where you want it.

Electrostatic removal… Continuation in Part

Posted on by legna880

Abstract

Electrostatic removal of colloidal, soluble and insoluble materials from a fluid- Continuation in Part



A filter that contains an adsorbent to remove the soluble portion of the contaminant, and then some form of electrostatic attraction additive. The electrostatic attraction additive would serve to pull the colloidal and particulate portion of the contaminant out of fluid, which could be held indefinitely, or be used to hold while the contaminant is allowed to solubilize and then be removed by the adsorbent. The electrostatic attraction additive could either be positively or negatively charged depending on the surface charge of the particulates that are in the fluid, and includes particles or fibers charged with charged polymers, zeolites, cation or anion exchange resin, powdered alumina, or nano-alumina.

Link via Google Patents:
https://patentimages.storage.googleapis.com/8c/2e/d4/54c84fb23f9747/US20190344289A1.pdf



Electrostatic removal of colloidal, soluble, and insoluble materials from a fluid

Posted on by legna880

US Patent Number: 10,376,900

ABSTRACT
A filter that contains an adsorbent to remove the soluble portion of the contaminant, and then some form of electrostatic attraction additive. The electrostatic attraction additive would serve to pull the colloidal and particulate portion of the contaminant out of fluid, which could be held indefinitely, or be used to hold while the contaminant is allowed to solubilize and then be removed by the adsorbent. The electrostatic attraction additive could either be positively or negatively charged depending on the surface charge of the particulates that are in the fluid, and includes particles or fibers charged with charged polymers, zeolites, cation or anion exchange resin, powdered alumina, or nano-alumina.



Link via USPTO

CNC Upgrade

Posted on by legna880

Custom made CNC router upgrade made with linear rail and 80/20 extruded aluminum. 3/4″ Plywood base which is easily replaced as it gets used. Custom E-stop, webcam, LED lighting, time lapse camera, and plaque.

Overall View of the new CNC.
Side view and view of web-cam monitor
Linear rail and T slots
Top wiring
E-stop
Z axisi homing button
Y axis homing button
Custom LED light on Vacuum Mount
Custom LED ring light for surface
LED’s Lit up
Ready to cut
Custom Plaque
Test Cut

Below is a video of the z-axis calibration with surface touch plate.

Video of the surface touch test after touch plate calibration.

Video of the homing sequence, moving the z-axis quickly until it hits the switch, then moving off, then moving slowly until it hits the switch for accuracy, and then moving off. The process is repeated for x and y axis movement at the same time.

Test on accuracy of the system moving 40units (each mark on the ruler was 0.5mm so total of 20cm)

Test cut with vacuum.

Carafe filter with air lock prevention feature (continuation)

Posted on by legna880

US Patent Number: US 10,335,717

Abstract

A filter for gravity-fed applications, having filter media with a hollow center, the filter being generally prone to a degradation or cessation in fluid flow due to air entrapment or air lock within the filter housing cavity, which develops during filtering. A diffuser element is introduced to pierce the entrapped air bubble, the diffuser element being an elongated structure connected to the filter housing top end cap and extending through the entrapped air bubble to the filter media.

Link via USPTO: https://bit.ly/2G6G8Hr





FILTERING CONTAINER

Posted on by legna880

Filtering container

US Patent Application Number: US10272371

Abstract:

A collapsible bag or compressible bottle container for accepting, holding, and filtering fluid. Fluid is filtered upon entry to the container or filtered upon egress. The filter media resides either in a removable cap, or in a second fluid-tight compartment attached to, and in fluid communication with, the container body. A one-way valve with unique one-time connection to a fluid source mitigates potential contamination from container overuse. A second collapsible layer is used in conjunction with the collapsible bag to accept compressed air that provides rigidity for the container body.



Google Patents PDF:

https://patentimages.storage.googleapis.com/d8/36/de/354da311c65dd7/US10272371.pdf

Water Filtration System

Posted on by legna880

WATER FILTRATION SYSTEM
US Patent Application Number: 20190126174



Abstract

A water filtration system includes a raw water reservoir that holds raw water. The system also includes a gravity filtration assembly to remove particles from the water as it passes through from the raw water reservoir. The filter of the assembly includes immobilized filter media within an enclosure.



Link va USPTO

Lemaire Channel and Print

Posted on by legna880



Scaled down image.  Original image is a composite stitched image from 60 images.  Total image size is greater than 1000 megapixel.



Unboxing the print
Fully unrolled

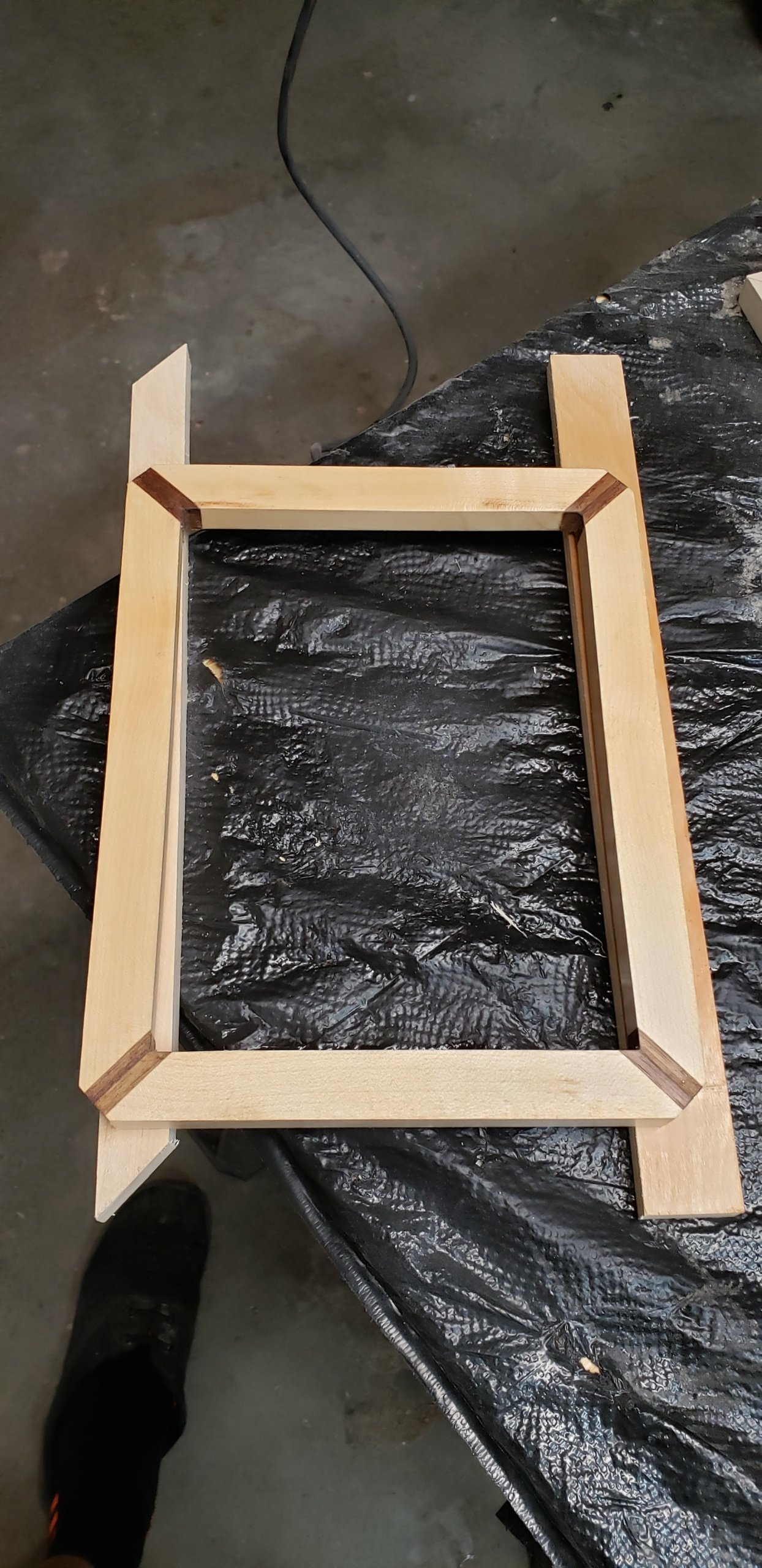

Designing the box to stretch the canvas over.


Support posts


Stretching the canvas.




Edge detail

Final stretched print



Print Detail



Final hung photo.  Final print dimensions 72″x25.7″

Wire Tree Light

Posted on by legna880

The tree was made with 120 strands of copper, and copper coated aluminum wires.
Lighting was added with coated copper LED string lights.
Base was made from Red Oak and LEDs powered by 3 AA batteries with a switch at the back.
Bottom Plate to house the wires is made out of Acrylic.
Photos were taken with a Canon D60.

Reverse Flow Gravity Filter Cartridge

Posted on by legna880

US Publication Number: WO 2016033596 A1

ABSTRACT
A carafe filter cartridge for reverse flow applications where the filter housing and filter media top end cap directs unfiltered fluid into the filter media annular cavity, through the filter media sidewalls. And the filter media bottom end cap prohibits egress, filter fluid from exiting through the filter media end or the annular cavity. Filtered fluid is instead directed out through apertures in the filter housing sidewall. The optimum ratio of annular cavity and/or top end cap orifice area to the respective perimeter is determined to remove the risk of detrimental fluid flow due to air bubble generation.



Link via Google Patents

Method of making a filter media with an enriched binder (Continuation)

Posted on by legna880

US Patent Number: US 9289702
Abstract
Water filtration media having a charged material affixed directly to binder material used in the fabrication of the filter media. A microbiological interception enhancing agent is added to the binder directly. The media having a charged material and a microbiological interception enhancing agent both affixed directly on or in a binder material is then combined with core filter media and prepared as a filtration media. A filter is prepared from the treated filter media.

Link via USPTO

https://patentimages.storage.googleapis.com/97/50/fb/d12f6cec32f2e0/US9289702.pdf

Filter media for gravity filtration applications

Posted on by legna880

US Publication Number:  US 20150014240 A1

ABSTRACT
A gravity filter media fabricated from multiple spiral wound or pleated layers, where different layers are designed for specific contaminant removal process and the layers are combined into a single pack for ease of use. The layers or fiber sheets are chemically treated for contaminant removal, with different layers having different chemical treatments, or the layers are immobilized with particles of various sizes for use as low contact-time adsorbents, with different layers having different immobilized particles, or the pore structure is varied from one fiber sheet to another—one being a tight pore structure, and the other being a more open pore structure, or any combination thereof. When using immobilized particles, the immobilized particles can be chemically treated for the specific removal of targeted contaminants, and multi-layered for custom designed removal of specific contaminants.
Link via Google Patents

Carafe filter with air lock prevention feature

Posted on by legna880

US Publication Number: US 9849407
ABSTRACT

A filter for gravity-fed applications, having filter media with a hollow center, the filter being generally prone to a degradation or cessation in fluid flow due to air entrapment or air lock within the filter housing cavity, which develops during filtering. A diffuser element is introduced to pierce the entrapped air bubble, the diffuser element being an elongated structure connected to the filter housing top end cap and extending through the entrapped air bubble to the filter media.

Link via Google Patents

New York City 3 Panel Print

Posted on by legna880



This photo has been arranged and optimized for printing.  There are three separate panels. Each panel has print dimensions of 70cm width by 100cm tall which will fit in standard 70x100cm frames.  The photo is available for both matte style printing or glossy.   Other dimensions can be made to order.  All three panels are available together or single panels as well. Please contact me for details.
